Pinbush Type Flexible Coupling

Pinbush Type Flexible Coupling

jay - Derk Industries Pin Bush type Flexible Coupling consist of a set of two hubs of graded cast iron transmits the torque through high tensile steel bolts and rubber bush to the machine shaft. The rubber bush moulded with nylon canvas net are user to absorb maximum shock load, torsional vibration and misalignments.

PINBUSH TYPE FLEXIBLE COUPLINGS (HEAVY DUTY)

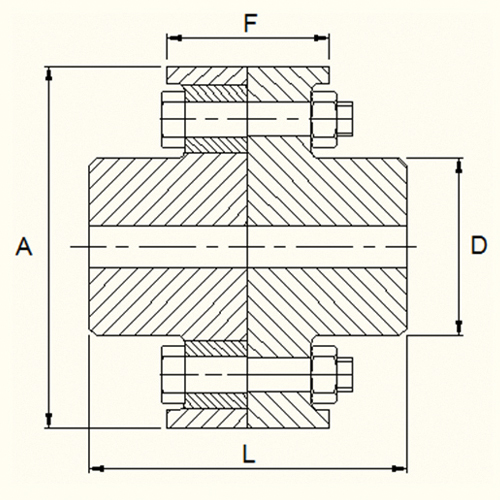

CODE	SIZE IN INCH A	NO. OF PINS	BORE MAX. (mm)	HUB DIA. (mm) D	TOTAL LENGTH (mm) L	FACE WIDTH(mm) F
FL-4	4	4	25	50	90	47
FL-4.5	4.5	4	28	56	91	52
FL-5	5	4	30	60	100	54
FL-5.5	5.5	4	35	70	100	55
FL-6	6	4	40	75	102	58
FL-6A	6	6	40	75	102	58
FL-7	7	6	50	90	120	62
FL-8	8	6	60	105	147	75
FL-8A	8	8	60	105	147	75
FL-9	9	8	65	115	171	78
FL-10	10	8	75	135	188	90
FL-11	11	8	80	140	192	92
FL-12	12	8	90	155	200	100

PINBUSH TYPE FLEXIBLE COUPLINGS (LIGHT DUTY)

CODE	SIZE IN INCH A	NO. OF PINS	BORE MAX. (mm)	HUB DIA. D (mm)	TOTAL LENGTH L (mm)
FC-6	6	4	40	75	92
FC-7	7	6	50	90	100
FC-8	8	6	60	105	115
FC-9	9	8	65	115	128
FC-10	10	8	75	135	138
FC-12	12	8	90	155	158
