Tyre Coupling

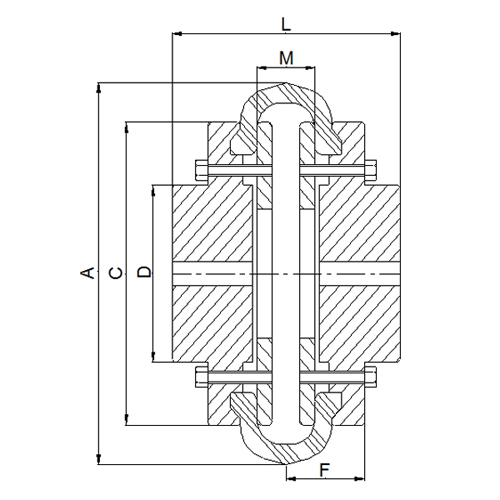

PRODUCT CODE	BORE		A in mm	L In mm	F In mm	D In mm	M In mm	C In mm	NO. OF BOLT
PRODUCT CODE	MIN	MAX	A in mm	L In mm	F In mm	D In mm	M In mm	C In mm	NO. OF BOLT
AF-40	9.5	25	102	67	33.5	82	18	82	4
AF-45	9.5	28	115	74	37	94	20	94	4
AF-50	11	32	137	95	34.5	79	27	106	4
AF-60	14	42	164	111.5	37.75	103	31.5	130	5
AF-70	14	42	190	128	43	82	32	144	5
AF-80	14	50	212	149	48.5	95	41	167	6
AF-85	14	50	222	150	51.5	103	38	176	6
AF-90	16	60	234	161	52	110	41	188	6
AF-100	16	60	250	171	57.5	124	45	214	6
AF-110
AF-120
