Bearing Unit Product of UCP TYPE BEARING UNIT

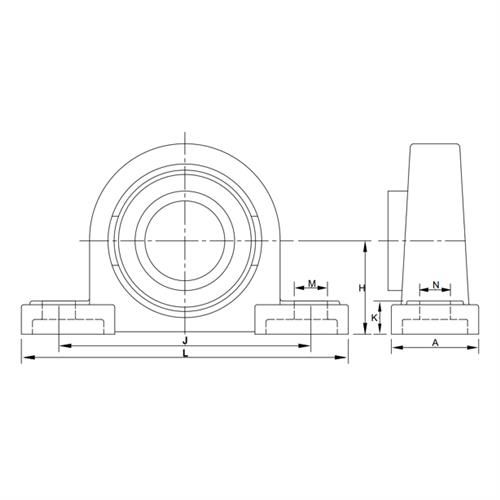

UCP BEARING UNITS	SHAFT DIA	H In mm	L In mm	J In mm	A In mm	K In mm	N In mm	M In mm	CLAMPING BOLT SIZE
MM	MM								MM
INCH	INCH								INCH
UCP-204	20	34	127	95	39	17	12	16	M 10
UCP-204-12	0.750	34	127	95	39	17	12	16	3/8
UCP-205	25	37	140	105	39	18	13	16	M 10
UCP-205-16	1.000	37	140	105	39	18	13	16	3/8
UCP-206	30	43.5	167	121	48	19	17	20	M 14
UCP-206-18	1.125	43.5	167	121	48	19	17	20	1/2
UCP-207	35	48	168	127	48	20	18	21	M 14
UCP-207-20	1.250	48	168	127	48	20	18	21	1/2
UCP-208	40	50	184	135	54	21	19	21	M 14
UCP-208-24	1.500	50	184	135	54	21	19	21	1/2
UCP-209	45	56	190	147	54	22	17	21	M 14
UCP-209-28	1.750	56	190	147	54	22	17	21	1/2
UCP-210	50	58.5	204	159	60	22	20	23	M 16
UCP-210-32	2.000	58.5	204	159	60	22	20	23	5/8
UCP-211	55	64	221	172	60	24	20	23	M 16
UCP-211-32	2.000	64	221	172	60	24	20	23	5/8
UCP-212	60	71	242	185	71	26	20	23	M 16
UCP-212-36	2.250	71	242	185	71	26	20	23	5/8
UCP-213	65	76	266	204	71	29	25	27	M 20
UCP-213-40	2.500	76	266	204	71	29	25	27	3/4
