Taper Bush Bolt on Hub

DERK Taper Bush Bolt Hub are convenient to mount rotors, Impellers, Agitators and other rotating device with the use of bolts for secure shaft mounting assembly.

DERK Bolt On Hub assembly are design for use with the universally accepted taper bush.

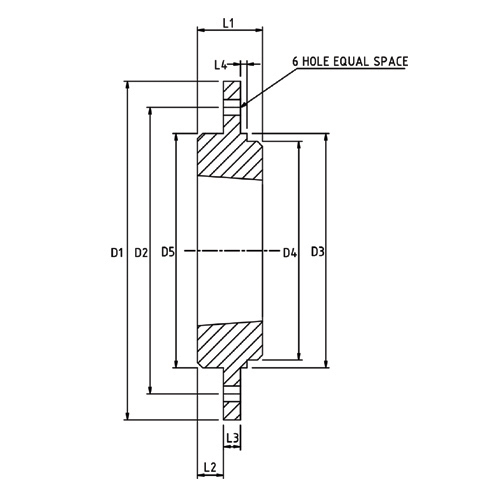

Product Code	BUSH USE	D1	D2	D3*	D4	D5	L1	L2	L3	L4	BOLT USE
BH1210	1210	120	100	80	74	80	25	10	6.5	2.5	M6
BH1610	1610	130	110	90	84	90	25	10	6.5	2.5	M6
BH2012	2012	145	125	100	99	100	32	13	8.5	2.5	M8
BH2517	2517	185	155	130	120	119	44	20	11.5	2.5	M10
BH3020	3020	230	190	165	146	147	50	20	11.5	2.5	M16

*Bore tolerance for D3=+ 0.00/-0.05mm is recommended
