QD Bushing

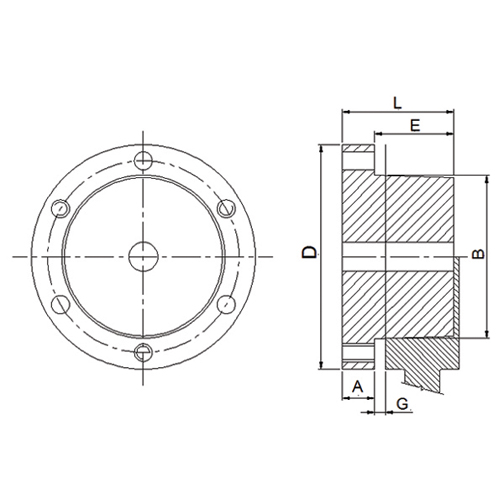

BUSHING	BORE		A	B	D	E	G	L	NO. OF BOLT
BUSHING	MIN	MAX	A	B	D	E	G	L	NO. OF BOLT
JA	9.52	28	7.90	34.90	50.80	17.50	5.10	25.40	3
SH	12.70	40	9.50	47.60	68.30	22.20	6.40	31.70	3
SDS	12.70	48	11.10	55.50	81.00	22.20	6.40	33.30	3
SD	12.70	48	11.10	55.50	81.00	34.90	6.40	46.00	3
SK	12.70	60	12.70	71.40	98.40	34.90	7.90	47.60	3
SF	12.70	70	12.70	79.40	117.50	38.10	7.90	50.80	3
E	22.20	85	19.00	97.60	152.40	47.70	7.90	66.70	3
F	25.40	100	20.60	112.70	168.30	71.40	10.30	92.00	3
