Pulley Product of Motor Slide Rails

PRODUCT CODE	TOTAL LENGTH (A)	HEIGHT (B)	BOLT CENTRE (C)	LEG SPACE (D)	GUIDE BOLT BSW X L
MR-16	420	34	385	270	5/8 X 5”
MR-18	460	38	420	240	5/8 X 5”
MR-20	510	38	470	295	5/8 X 5”
MR-22	560	40	520	325	5/8 X 7”
MR-25	625	40	585	370	5/8 X 7”
MR-28	700	42	660	465	5/8 X 7”

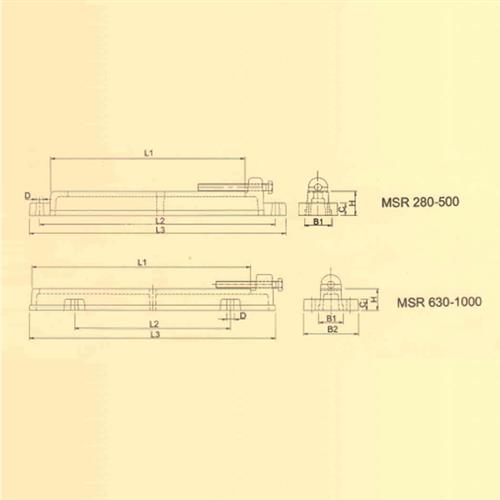

PRODUCT CODE	L1	L2	L3	B1	B2	D	C	H	HEXAGONAL ADJ. SCREW
MSR-280	280	340	370	40	-	10	18	35	M 10 X 120
MSR-315	315	390	430	50	-	13	20	45	M 12 X 140
MSR-355	355	430	470	50	-	13	20	45	M 12 X 160
MSR-400	400	490	540	56	-	15	25	50	M 16 X 180
MSR-450	450	540	590	56	-	15	25	50	M 16 X 200
MSR-500	500	610	670	63	-	19	32	56	M 20 X 220
MSR-630	630	450	710	71	160	19	32	63	M 20 X 240
MSR-710	710	500	800	80	170	24	36	71	M 24 X 260
MSR-800	800	600	350	90	200	28	36	80	M 24 X 300
MSR-1000	1000	700	1100	90	200	28	36	80	M 24 X 300
